Gaskets: the smallest part with the largest consequence.

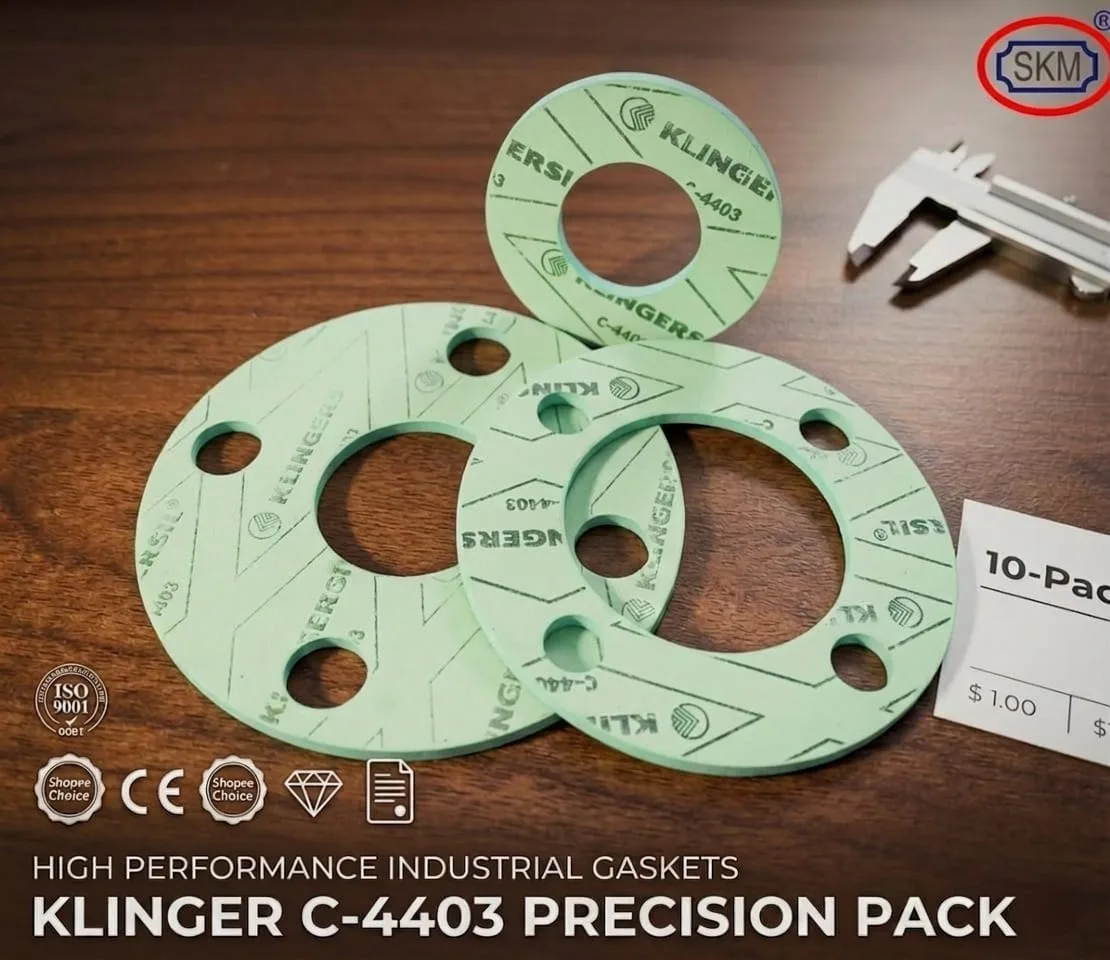

mbquzhuems2uefgyl7c6

Non Metallic Gasket

  • Material
  • CNAF (Compressed Non Asbestos Fiber)
  • Type
  • Full Face
  • Standard
  • ASME / DIN / JIS
  • Flange Applicable
  • B16.5, B16.47A, B16.47B, EN 1092-1, JIS B2220
  • Thickness
  • 1–5 mm

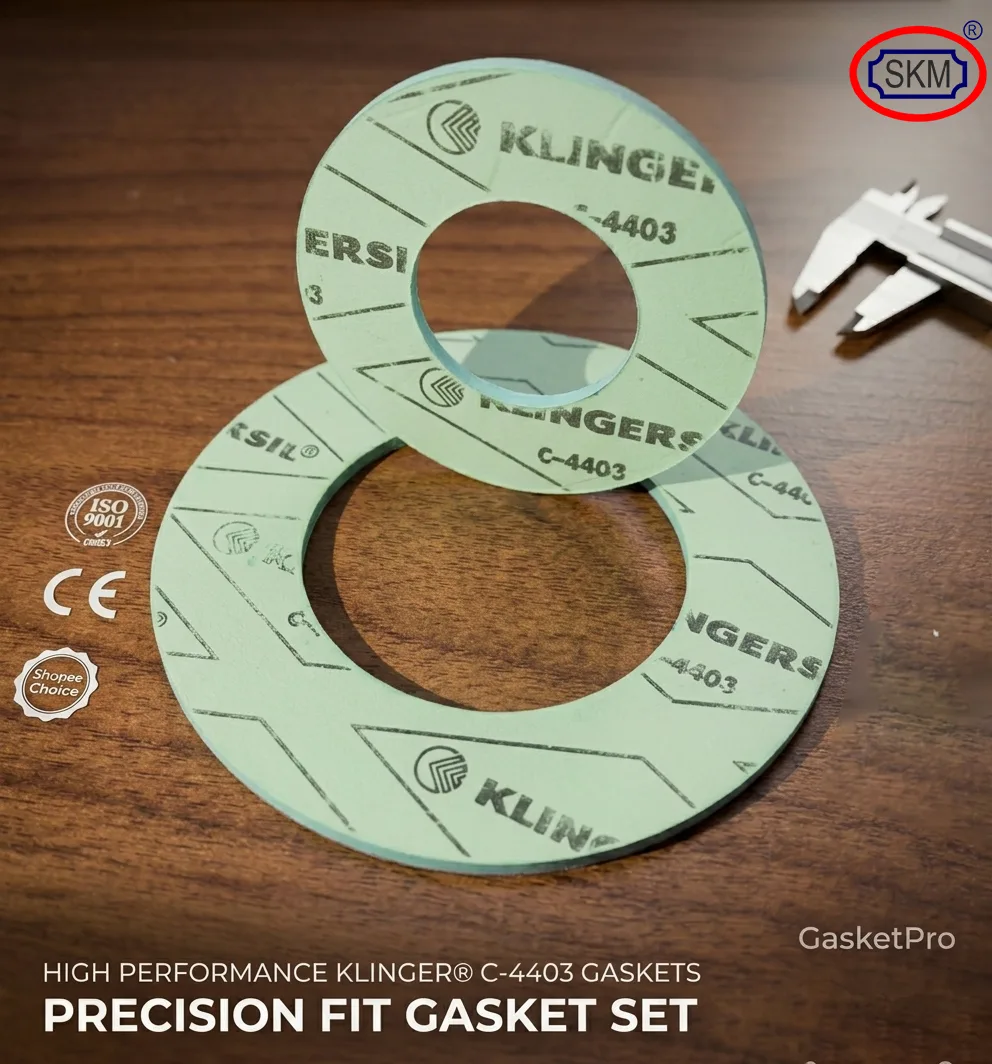

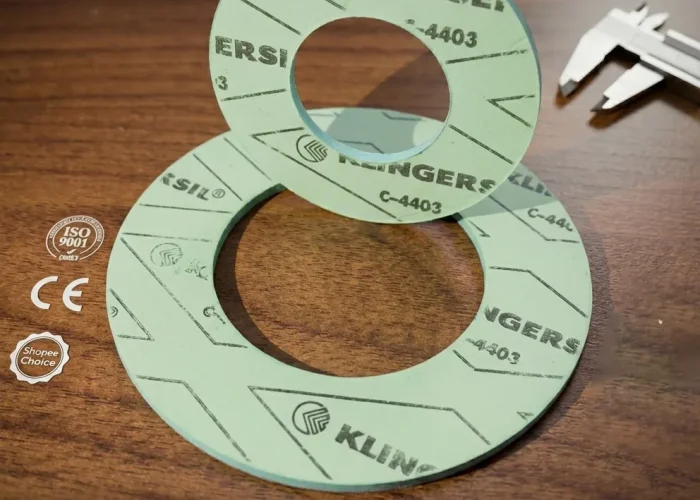

ymrjfeowdl8sqydz6biz

Non Metallic Gasket

  • Material
  • CNAF (Compressed Non Asbestos Fiber)
  • Type
  • Flat Ring
  • Standard
  • ASME / DIN / JIS
  • Flange Applicable
  • B16.5, B16.47A, B16.47B, EN 1092-1, JIS B2220
  • Thickness
  • 1–5 mm
kazceq3bfgcq1dvdtgou

Non Metallic Gasket

  • Material
  • Composed of Styrene Butadiene With Steel Reinforcement
  • Type
  • Flat Ring
  • Standard
  • ASME / DIN / JIS
  • Flange Applicable
  • B16.5, B16.47A, B16.47B, EN 1092-1, JIS B2220
  • Thickness
  • 1–5 mm

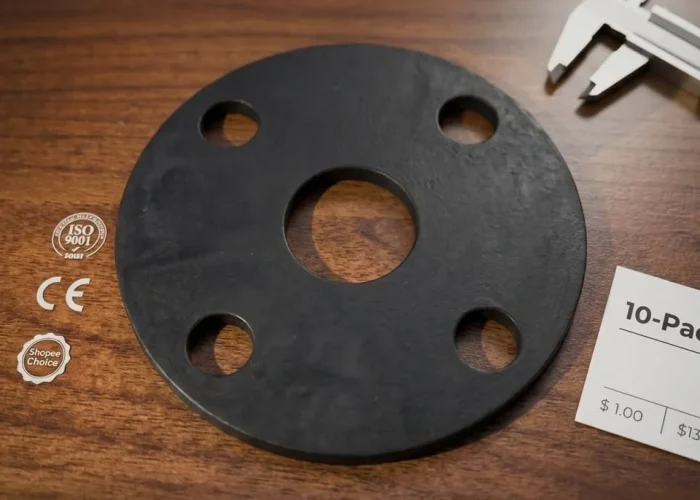

iqeujsqshwb8pqxq3led

Non Metallic Gasket

  • Material
  • NBR ( Nitril Butadine Rubber )
  • Type
  • Full Face
  • Standard
  • ASME/DIN/JIS
  • Flange Applicable
  • B16.5, B16.47A, B16.47B, EN 1092-1, JIS B2220
  • Thickness
  • 1–5 mm

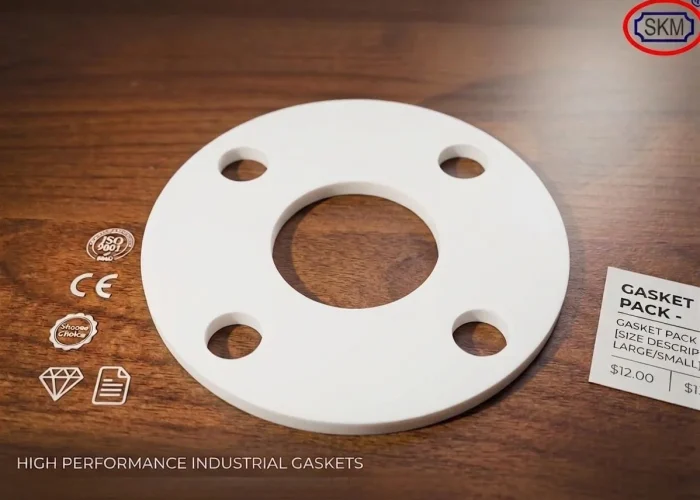

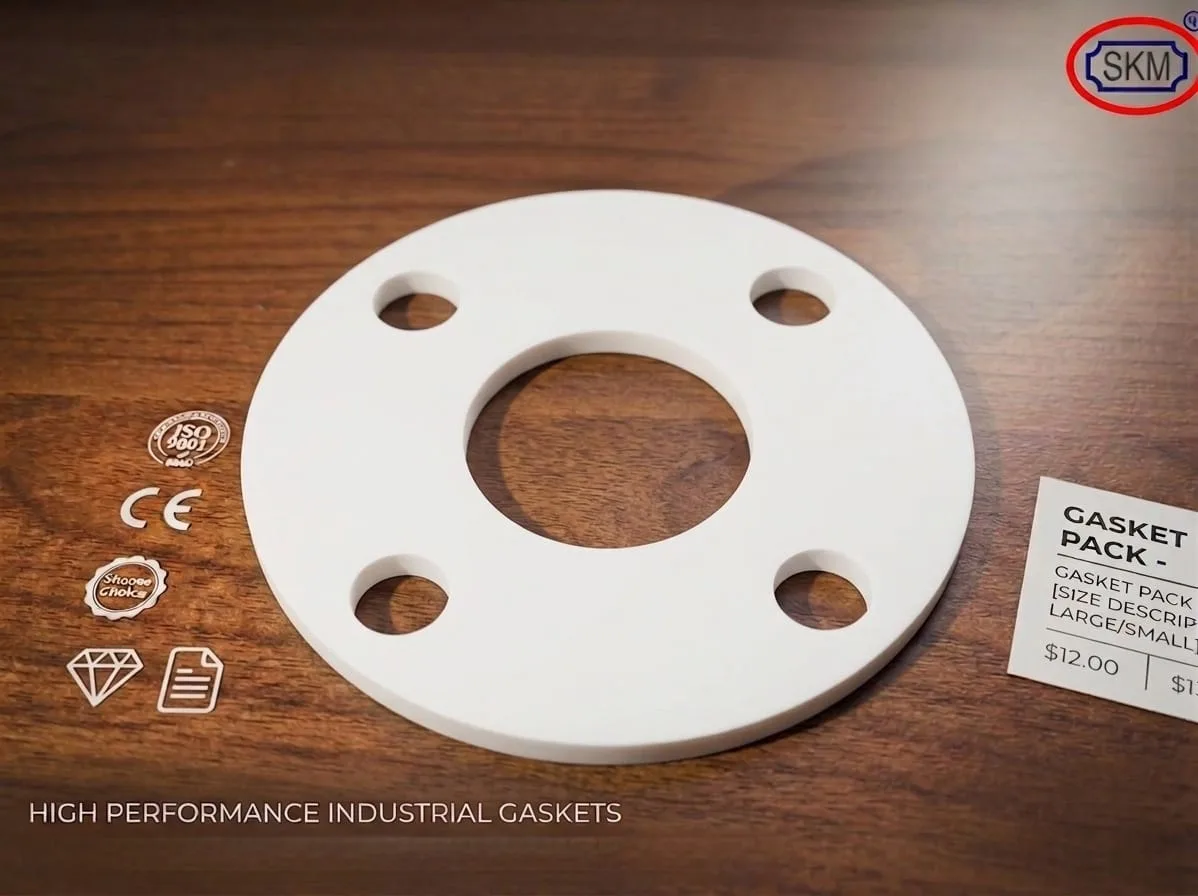

ukjtwp9qnitfpjjwu7ig

Non Metallic Gasket

  • Material
  • PTFE ( Polytetrafluoroethylene)
  • Type
  • Full Face
  • Standard
  • ASME / DIN / JIS
  • Flange Applicable
  • B16.5, B16.47A, B16.47B, EN 1092-1, JIS B2220
  • Thickness
  • 1–5 mm
Flating (6)

Non Metallic Gasket

  • Material
  • NBR ( Nitril Butadine Rubber )
  • Type
  • Flat Ring
  • Standard
  • ASME / DIN / JIS
  • Flange Applicable
  • B16.5, B16.47A, B16.47B, EN 1092-1, JIS B2220
  • Thickness
  • 1–5 mm

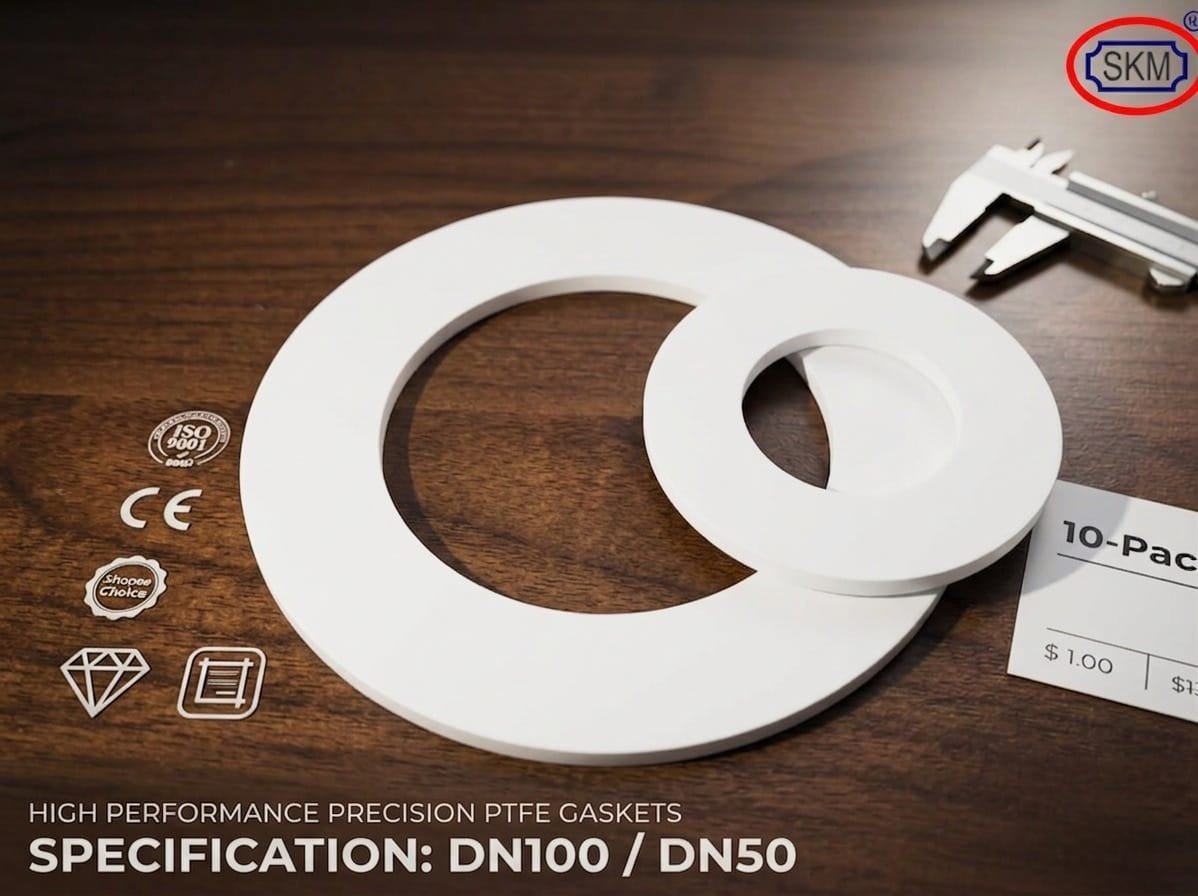

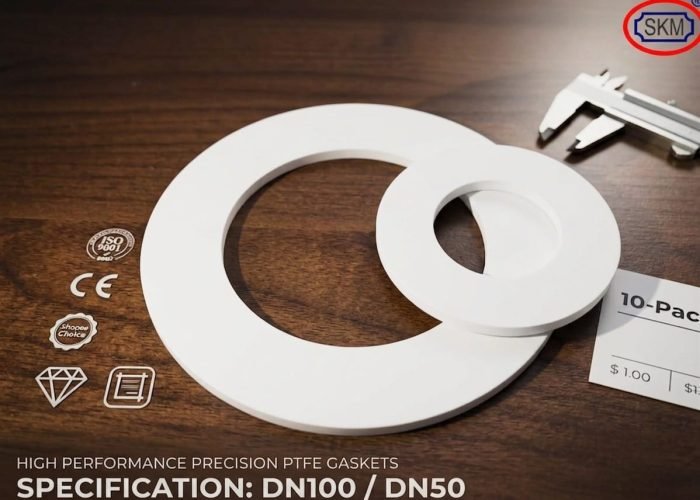

Flat Ring (7)

Non Metallic Gasket

  • Material
  • PTFE ( Polytetrafluoroethylene)
  • Type
  • Flat Ring
  • Standard
  • ASME/DIN/JIS
  • Flange Applicable
  • B16.5, B16.47A, B16.47B, EN 1092-1, JIS B2220
  • Thickness
  • 1–5 mm
Full Face (8)

Non Metallic Gasket

  • Material
  • Composed of Styrene Butadine With Steel Reinforcement
  • Type
  • Full Face
  • Standard
  • ASME / DIN / JIS
  • Flange Applicable
  • B16.5, B16.47A, B16.47B, EN 1092-1, JIS B2220
  • Thickness
  • 1–5 mm
Spiral Wound Gasket (9A)

Non Metallic Gasket

  • Material
  • Stainless Steel, Carbon Steel with Filler Graphite
  • Type
  • Spiral Wound
  • Standard
  • ASME / DIN / JIS
  • Flange Applicable
  • B16.5, B16.47A, B16.47B, EN 1092-1, JIS B2220
  • Thickness
  • 4.5 mm
  • Configurations

What we build.

Spiral Wound

CG, CGI, R, RIR styles with inner and outer rings.

Ring Joint

Octagonal R, Oval R, RX, BX rings to API 6A flanges.

Sheet

Compressed fibre, graphite, or PTFE sheet stock.

Kammprofile

Serrated metal core with soft facing for tight seal at low load.

Camprofile

Serrated core with PTFE or graphite facing for chemical service.

  • Testing & documentation

Witnessed. Documented.

01

Dimensional

Full dimensional check to ASME B16.20 / B16.21.

02

Material

PMI on metallic windings and rings.

03

Markings

Compliance markings per ASME (size, class, material, manufacturer).

04

Traceability

Heat-number traceability through MTR.

Don't see what you need?
Tell us your spec.

Submit an RFQ
